1.In feed & thru feed can be done in one machine
2.Auto feeder can be designed according to exact product
3.Feeding by hydraulic system with 35T rolling force
4.Easy to operate or maintain the machine
5.Protection cover above the main shafts
6.High precision, stability & durability
7.CE certificate
| Working diameter | 12-90mm |
| Thread pitch | 1.0-8mm |
| Thread length | In feed or Thru feed |
| Spindle speed | 16/21/27/37/46/62rpm (variable speed) |
| Outside diameter of rolling die | 170-220mm |
| Inside diameter of rolling die | 75mm |
| Thickness of rolling die | 180mm |
| Feed stroke | 0-16mm |
| Total machine power | 18KW |
| Max rolling pressure | 35T |
| Supply voltage | 380V 3P 50Hz |
| Weight(reference) | 4080(KG) |
| Package Dimension(L*W*H) | 1660*1780*1710mm |
| Dimension(L*W*H) | 1600*1680*1650mm |

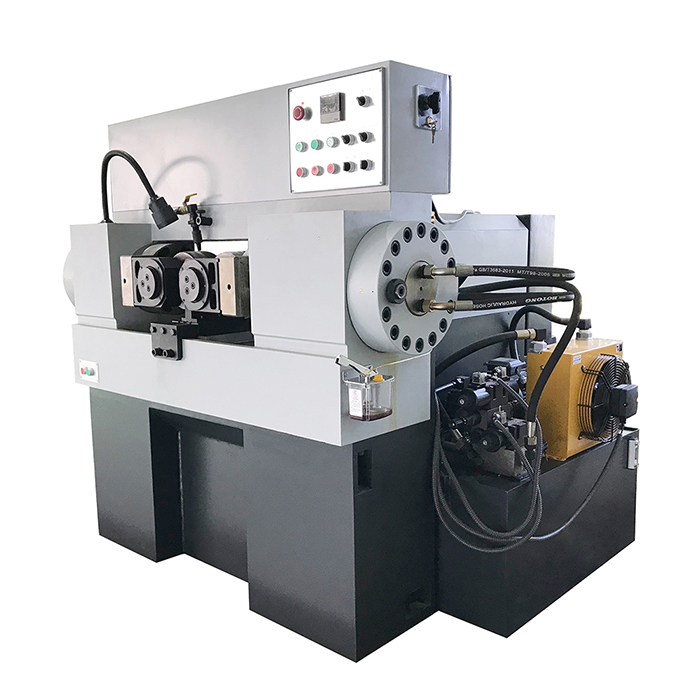

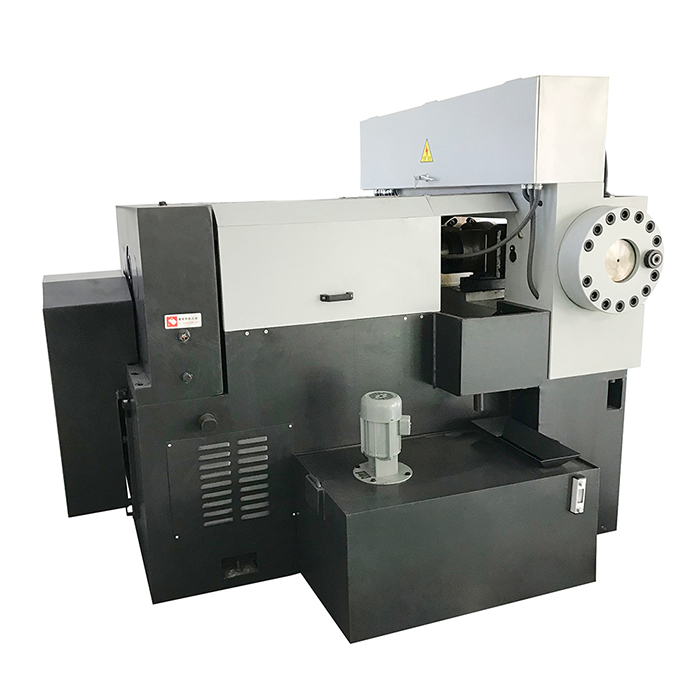

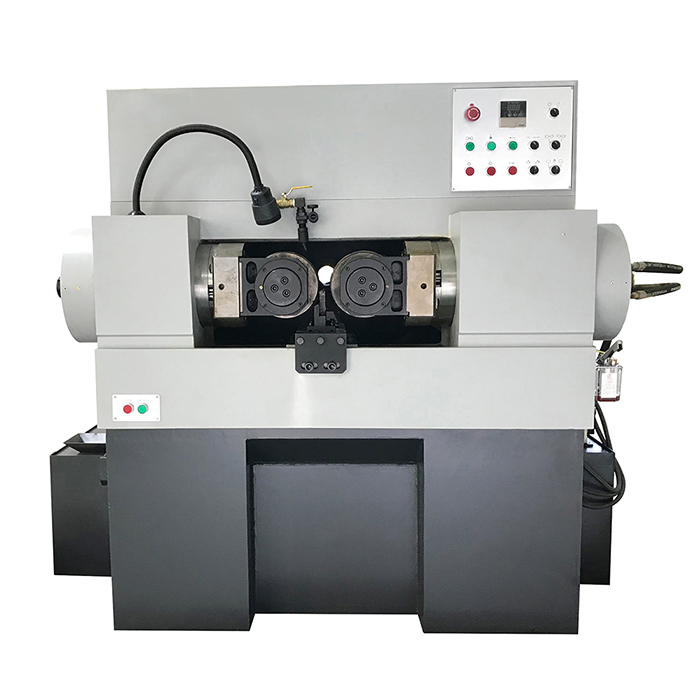

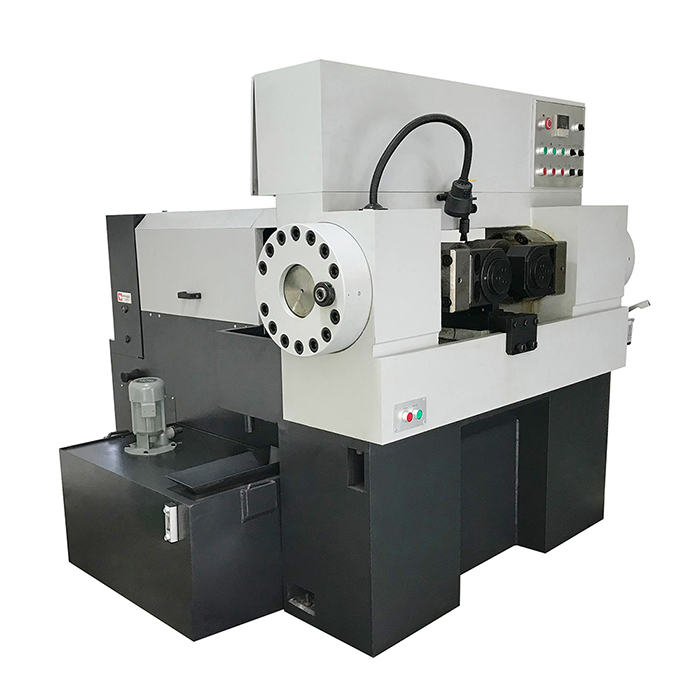

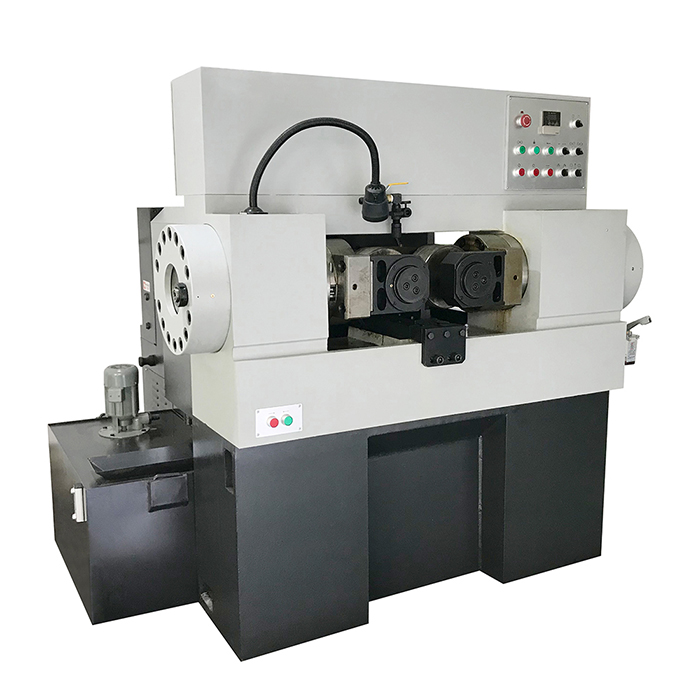

This is one two rolls thread rolling machine with hydraulic system, the Max. Rolling pressure is 35T. Can be used to make thread, cross knurling, straight knurling, groove or polishing.
There are 2 adjusting nuts which can control center distance of two thread rolling dies on machine. In feed and Through feed can be easily switched, only need to change thread rolling dies, and adjust the angle of main shafts.
The left and right supporting bases on the machine are an integral casting, and the center hole is processed and formed on one machine at one time, which largely guarantees the high precision of the machine. The adjustment scale of main shaft is marked on a hemispherical seat, so the indexing is more accurate.
Rotation speed of the machine can be adjusted by changing gears in the gearbox, so different speed can be used according to different products in real production.
With the development of science and technology, the demand for automatic machinery in various factories is getting higher and higher, same as for thread rolling machine. We have our own professional R&D team, which can design many different customized automatic feeder according to exact product from customers. The automatic thread rolling machine can help lots of factories to save cost, to produce safely.
